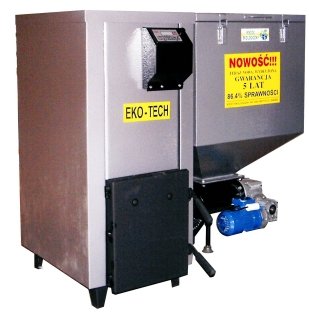

ECO-TECH 19-200

One of the basic modifications applied in this, automatically fuel loading boiler is appropriately shaped feeder spiral. Refining the shape and the slant of the spiral housing allowed to eliminate transport problems not only of eco-pellets but wood pellets also. The feeder became more universal and in emergency situations is able to retrieve fuel by turning in the opposite direction. The heart of the boiler is the burner. A retort, self-cleaning burner has been applied in the boiler. The optimum input of air in the burner enables efficient combustion of individual fuel portions. Additionally, in Eco-Tech boilers a solid fuel grill has been placed above it. This practical solution allows to burn both wood as well as coal, which is fully appreciated when suddenly there is no power or appropriate fuel available. A controller manages the operation of the boiler. It decides abut the cycle of turning on the feeder and in case of an emergency about the direction of its rotation. Similarly, it defines the work of the vent pushing air in to the burner. In addition, it also administers the operation of the water pump and, what’s even more interesting, it enables the choice of hot water priority. Adjustment of the boiler operation depends on its water and the room temperature, while safety adjustment is based on the temperature of the feeder. Eco-Tech boilers reach as high thermal efficiency as 86,5%. Efficiency of heat produced out of fumes is ensured, in case of Eco-Tech 19, by a combustion tube system over the burner. In the back, larger boilers have a two-way thermal exchange system. We can find an even more developed 3-way thermal exchange in class Eco-Compact boilers. A large power selection of Eco-Tech boilers all the way up to 200 kw enables applying them to heat premises measuring as much as 1700 m2. Due to a low temperature type of combustion in an open system and with pressure up to 0,1 MPa these boilers do not require UDT registration. Solutions of Termo-Tech company are a combination of contemporary with functionality and simplicity guaranteeing reliability.
